Pinhole Photography Attachment for Micro Four Thirds

One of the joys of mirrorless interchangeable lens cameras is the ability to experiment with older lenses, bellows, and similar equipment without any tedious record keeping or expense of film.  With a simple attachment, one can readily adapt a mirrorless camera to experiment with one of the earliest photographic techniques, using a pinhole rather than a lens to project the image.

MkII pinhole non-lens on E-P1

Supplies needed:

C-mount to Micro Four Thirds lens adapter (~$10 off eBay)

Large metal washer to fit the recess in the C-mount adapter (~$1 at local hardware store)

Aluminum flashing or similar thin sheet (also at hardware store, or from the peel-off top of a food container (bread crumbs, soft cat food, etc.) )

CA adhesive (“Superglue”)

PVA adhesive (“Elmer’s Glue-All”)

Marking tool (pencil or ultra-fine point Sharpie brand marker)

Scissors (capable of cutting the aluminum)

Center punch, hardwood block, and small hammer

600 grit wet-or-dry sandpaper and flat surface (glass sheet, marble block, etc.)

Needle and softwood block

Ruler marked in millimeters  (for the obsessive)

Flat black spray paint (optional)

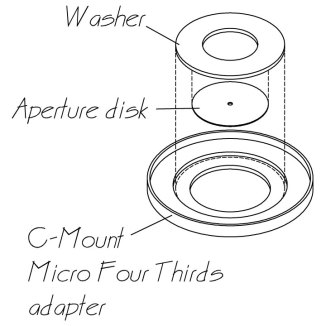

Parts for first prototype.

1.  Use the inner edge of the washer to trace circles onto the aluminum sheet.  Then, use the C-mount adapter to trace a larger circles around the smaller circles; these circles should be spaced in slightly from the inner edge of the opening in the C-mount adapter.  Cut out the circles.  Note that the metal edges may be sharp enough to cut through skin!

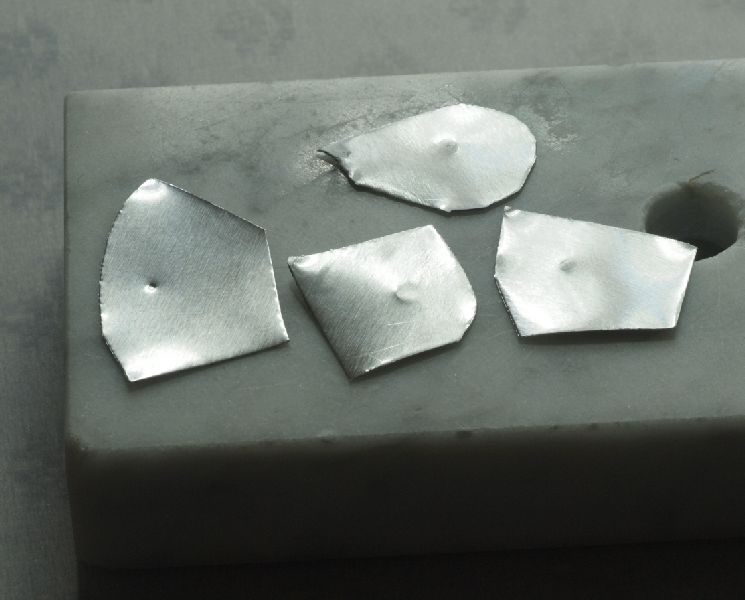

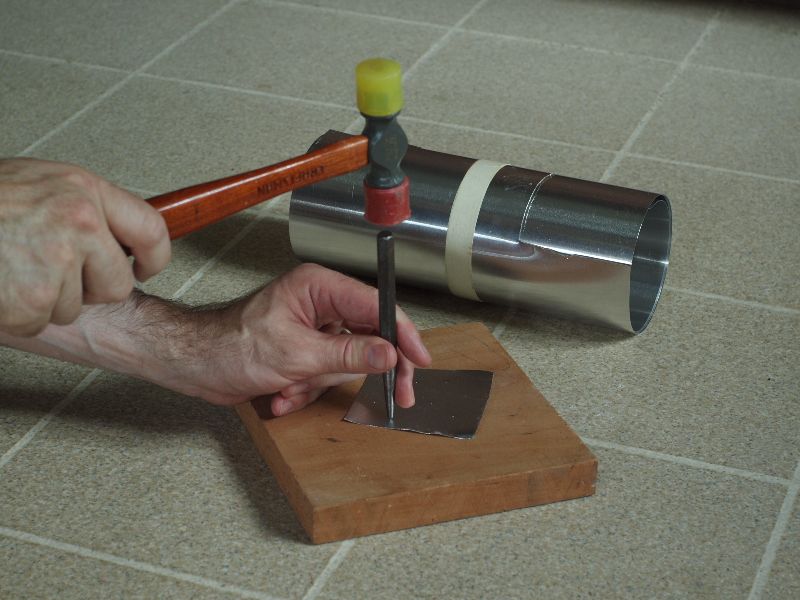

2.  Use the punch to make an indent in the center of each cut-out circle.  This should only take a very light tap.  (Note that the photo shows punching disks for the second prototype, in which the dimples are punches first and then the disk cut out around the indent.)

3.  Sand the side of the aluminum circle with the bulge on a flat surface (the photo shows a marble block salvaged from a bowling trophy – $0.50 at a yard sale years ago) until the bulge has been flattened.  (Again, the photo shows disks for the second prototype – cutting the parts crudely (very crudely) to shape and selecting the most promising disk or two before cutting the circle saves effort in cutting.)

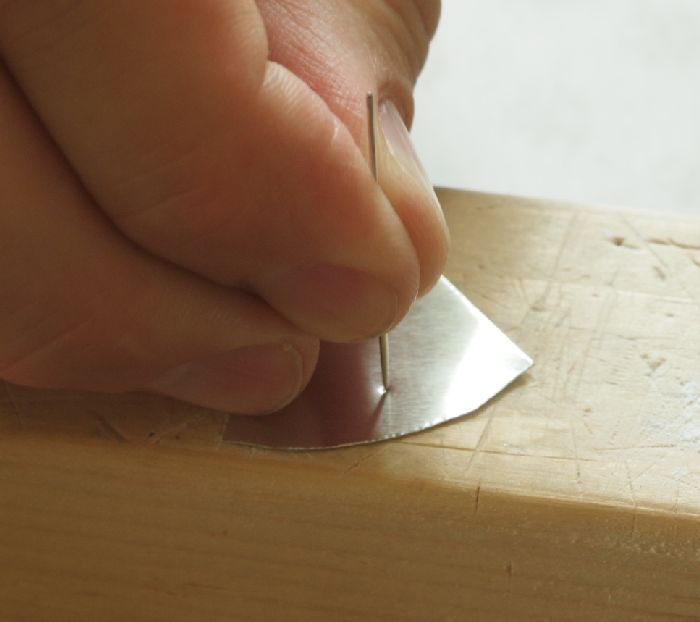

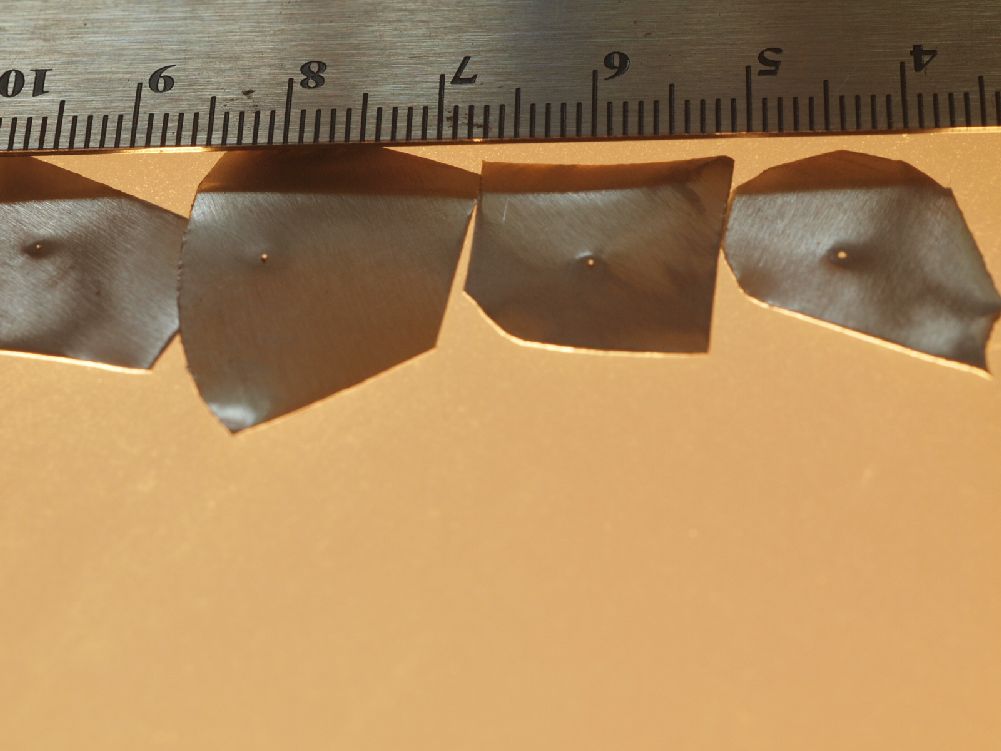

4.  Use the needle to poke a small hole in the center of each indent to form aperture disks.  Ideally, the hole should be 0.2mm in diameter for a Four Thirds sized sensor.  Since the ruler likely is not marked finer than millimeters, estimate about 1/5.  The first try, most likely the smallest hole will still be overly large.

No, I don’t really believe that readers really need this step illustrated.
Yes, I should have trimmed my nails.

5.  Select the best-looking of the punched disks and use CA adhesive to attach it onto the washer, with the punched hole centered in the washer opening.



6.  Optionally, spray the washer and disk (on the side of the washer onto which the disk is attached) flat black.

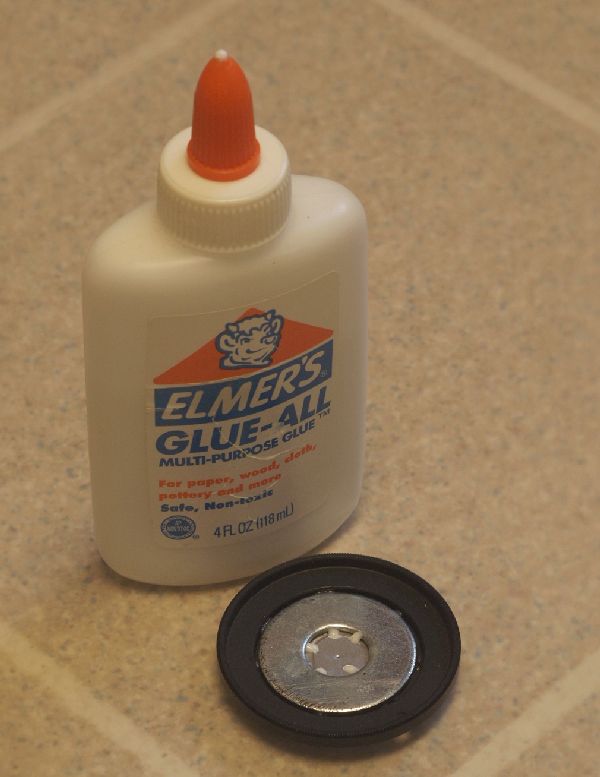

7.  Position the washer in the recess in the C-mount adapter (with the aperture disk facing inwards toward the camera-mounting side) and move it until the aperture is centered.  Use dots of PVA glue around the washer (applied on the outer lens-mounting side of the adapter) to attach the washer in position, and set aside to let the glue cure.



Testing of the Mark I suggested that the aperture was too large, resulting in a blurry image.

The optimal pinhole size calculator at:

http://www.mrpinhole.com/wiz.php?Func=FilmDimension

indicates that, for a Four Thirds sensor (17mm x 13mm), the optimal size would be 0.2mm.  Comparing the aperture to a ruler revealed in an estimated 0.4 mm aperture, rather than the optimal 0.2 mm.



Naively believing that a sharper image could be attained with the proper aperture size, the MkI device was modified.

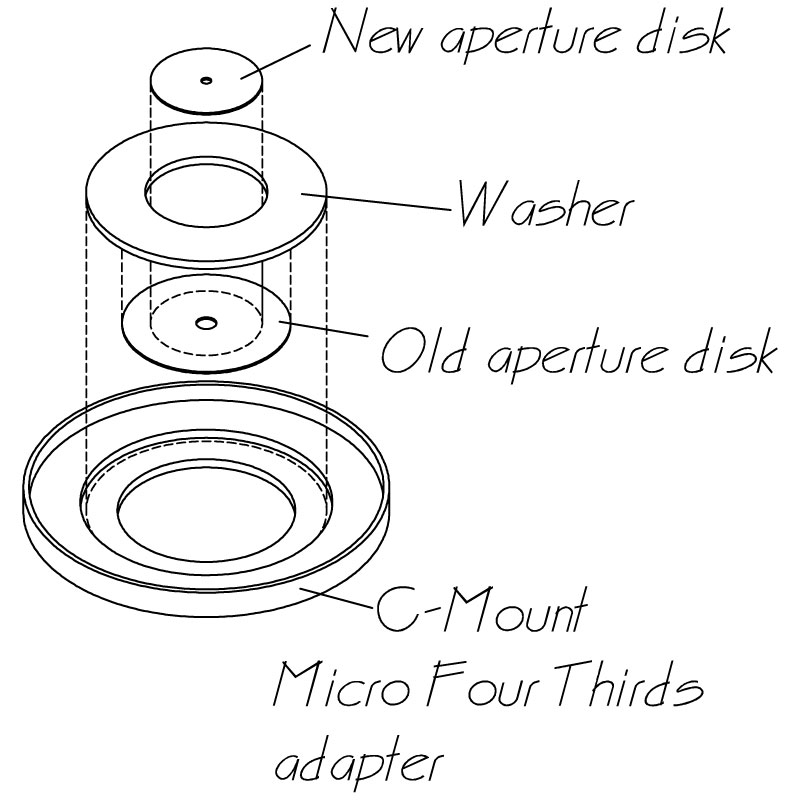

To provide a smaller aperture, and the ability to readily change the aperture disk as needed, the aperture of the Mark I device was drilled out a bit and a new aperture disk added to form the Mark II device.  The new aperture disk is cut smaller than the washer opening and is attached atop old Mark I aperture disk using PVA glue in the same manner as the washer was attached to the C-mount adapter.

The aperture can be readily centered by holding the assembly overhead and holding the disk down while applying the glue; just be sure that the neighbors aren’t watching this spectacle.  The glue allows the new disk to be readily removed for replacement, which facilitates trying different aperture sizes.

Attaching the washer to the C-mount adapter by PVA glue allows it to be removed if it is desired to use the C-mount adapter for its intended purpose, such as after finding that the image is blurry no matter what size aperture is used, due to the diffraction of light.

MkII with estimated 0.25mm aperture

MkII with estimated 0.2mm aperture



Advertisements

Shooting the Sun

This past week’s transit of Venus across the sun offered a rare astronomical spectacle, made even rarer in New Hampshire by not being completely obscured behind clouds. With a dismal forecast for the day, I did not test out my equipment beforehand as I should have.  However, this event was sufficiently interesting that I did rig up my E-P1 in preparation in the event that the clouds did clear.  Which they did, for a merciful twenty minutes or so at the beginning of the transit (after closing in, they later cleared just long enough for me to load my gear into the car and drive to the nearby parking garage (since the sun was at that time below the trees) and then block the sun once more and begin to rain heavily as soon as I stopped on the top level; the clouds here will have their bit of fun.)

Lens is a Celestron 500mm f/5.6 catadioptric that I bought in the late 1980’s and which has survived years of storage and little use quite well.  It was fitted with a Twin Oaks 2+ solar filter which I bought on eBay for about a quarter of the price new (best not to shop in the months preceding a solar eclipse).  The filter was for a slightly larger scope, so required “shimming” with some black self-adhesive felt around the inside to make a very tight fit to the lens; this is not a filter that I want accidentally falling off in use!  The lens has a T-2 mount, and for photography I probably would have been better off just using my T-2 to Micro Four Thirds adapter and cropping the resulting images. However, I also wanted a large enough display on the viewscreen to show my children this wonderful event, so mounted the camera to the lens  via a Konica AR T-ring, a Soligor 1.5X teleconverter, and a Fotasy Konica AR to MFT adapter.  This provided a suitably large image on the viewscreen, but without the edge of the solar disk quickly drifting off screen as happens with a 2X teleconverter.  The lens has a homemade wooden block with a tripod socket mounted further back to improve the balance.  The lens shade shown, a piece of dryer duct lined with self-adhesive black felt and sprayed in a camouflage finish, was not used.

This contraption was mounted atop a homemade tripod that employs three discarded wooden crutches as legs, supporting a heavy Manfrotto pan-tilt head.  The remaining piece of equipment was a piece of black cloth to cover the camera and duck under, in the manner of old-time photographers with view cameras. Testing when I first bought the solar filter showed that this was necessary both to see the viewscreen and to avoid accidentally looking at the sun while aiming the camera.

The E-P1 allows setting two custom reset profiles, and I have set one for typical tripod shooting, with image stabilization turned off, manual focus selected, and a 2-second delay on the shutter to avoid the need for a cable release.  The exposure compensation was set to provide a visually pleasing image (either -0.7 or -1.0; in the excitement, I did not take notes), and the zoom focusing option was used to get the least blurry image.

I am not really happy with the image quality (of course, I selected the least fuzzy of the series to post), but the rig did provide me a viewscreen to conveniently show this relatively fast-moving event to all three children.  And, having expected the forecast clouds to obscure the event completely, I was overjoyed to be able to see any of the transit.

The Obligatory Bag Equipment List

Many photographers are overly interested in equipment (sometimes seeming more interested in the gear itself than in actually using it), and a common article is the self-indulgent listing of what the particular photographer typically carries in their shooting bag.  Working under the delusion that my preferences might matter to anyone other than myself, here is yet another such article.

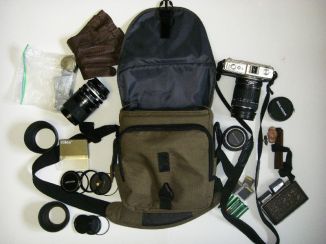

The bag itself is a Tamrac Express 6 http://www.tamrac.com/3536.htm , carefully selected on the basis of being won for a minimum bid on eBay at a cost, shipped, of less than $10.  The bag has two partitions that divide the main compartment into a center/top section with two side sections.  The bag is typically loaded as follows:
